The Harley-Davidson® Freewheeler delivers aggressive styling, enticing performance, and confident handling on three wheels.

Specifications

  • Dimensions
    add remove
    • Length:
      103.0 in
    • Ground clearance:
      4.9 in
    • Rake (steering head):
      26
    • Trail:
      4.0 in
    • Wheelbase:
      65.7 in
    • Tires, front specifications:
      MT 130/60B19 M/C 61H
    • Tires, rear specifications:
      P215/45R18 83T
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      1,076 lbs
    • Weight, in running order:
      1110 lb
    • Luggage capacity – volume:
      2 cu ft (0.06 m3)
    • Tire, type:
      Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      Shorty slash down-style chrome finish mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      121.7 ft-lb
    • Engine torque (RPM):
      2750
    • Horsepower:
      90 HP / 67 kW @ 4750 rpm
    • Lean angle, right (deg.):
      N/A
    • Lean angle, left (deg.):
      N/A
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      42.8 mpg (5.5 l/100km)
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      151 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      10.534
    • Gear ratios (overall) 2nd:
      7.302
    • Gear ratios (overall) 3rd:
      5.423
    • Gear ratios (overall) 4th:
      4.392
    • Gear ratios (overall) 5th:
      3.741
    • Gear Ratios (overall) 6th:
      3.157
  • Chassis
    add remove
    • Front fork:
      49mm dual bending valve
    • Rear shocks:
      Hand-adjustable emulsion rear suspension
    • Wheels, front type:
      Cast aluminum
    • Wheels, rear type:
      Cast aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent
    • Gauges:
      Speedometer, fuel gauges; display features odometer, trip A, trip B, range to empty, and gear indicator

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Advertised pricing excludes applicable taxes title and licensing are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

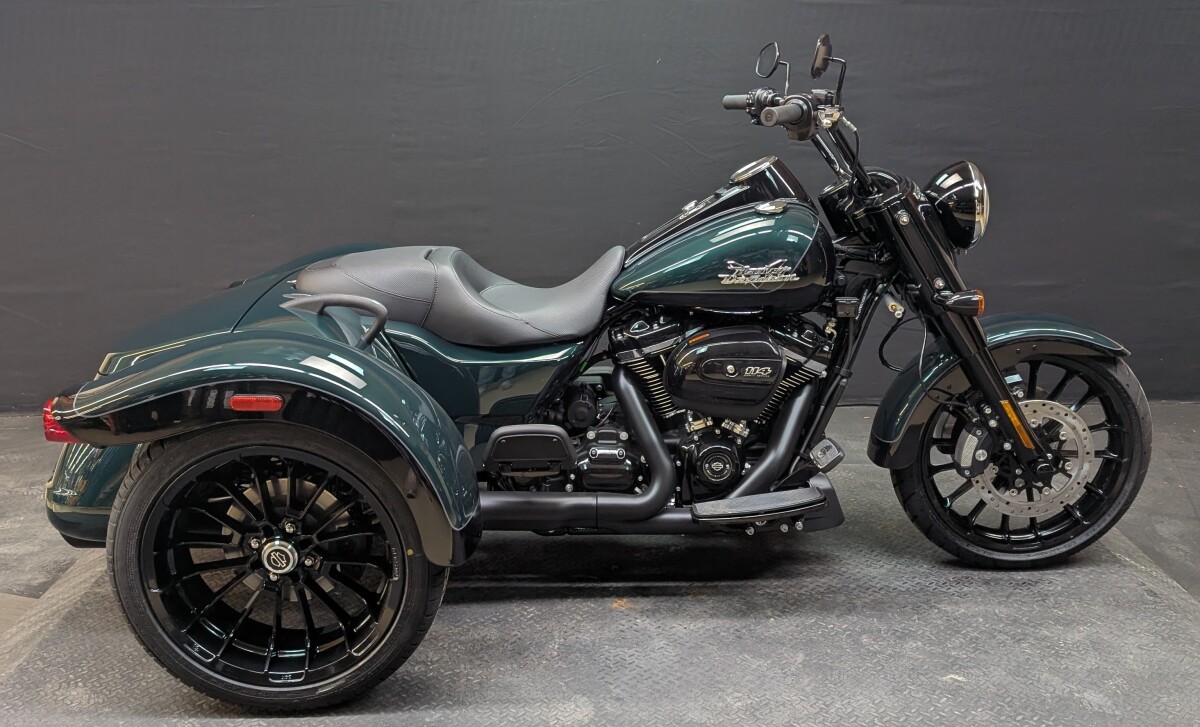

Harley-Davidson® Freewheeler® 2024 FLRT ALPINE GRN/ BLK
